dapet ide menjelang pagi, seusai melaksanakan sahur, yaitu control suhu ruangan, control suhu ruangan ini berfungsi untuk mengatur suhu ruangan dan disini yang saya maksud adalah ruangan penyimpan makanan, dimana suhu harus tetap stabil, agar makanan tetap awet dan tidak cepat basi,, #saya juga bingung dengan hal ini, kenapa puasa-puasa pikirannya masalah makanan,hehe

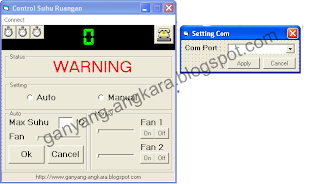

berikut screenshootnya :
1. seperti biasa yang pertama kita lakukan adalah membuat skema/smulasi di proteus, dan berikut skemanya
'=====================
$regfile = "m16def.dat"
$crystal = 8000000
$baud = 9600
Enable Interrupts
Enable Urxc
On Urxc , Inserial
Config Timer1 = Pwm , Prescale = 1024 , Pwm = 10 , _
Compare A Pwm = Clear Down , Compare B Pwm = Clear Down
Config Adc = Single , Prescaler = Auto , Reference = Avcc
Start Adc
Dim Adc1 As Word , Adc2 As Single , Adc3 As Integer
Do
Adc1 = Getadc(0)
Adc2 = Adc1 / 1023
Adc3 = Adc2 * 500
Adc3 = Adc3 Mod 100
Print Chr(adc3)
Waitms 500
Loop
Dim In_s As String * 5
Dim Temp As String * 5
Dim Out_s As Integer
Inserial:
Input In_s
Temp = In_s
In_s = Left(temp , 1)
Out_s = Len(temp) - 1
Temp = Right(temp , Out_s)
Out_s = Val(temp)
Out_s = Out_s * 10
Select Case In_s
Case "!"
Pwm1a = Out_s
Case "@"
Pwm1b = Out_s
Case "#"
Pwm1a = Out_s
Pwm1b = Out_s
End Select
Return
'=====================
2. buka aplikasi vb6 dan buat form-formnya seperti gambar di bawah ini, saya menggunakan 2 form dan 1 module
Form 1 :
| Component | Name | Caption | Enabled | Value | Other |
| Label1 | 0 | true | true | Font = ds-digital | |
| Label2 | Warning | true | false | color = red | |
| Label3 | Max Suhu | true | true | ||
| Label4 | 'C | true | true | ||
| Label5 | Fan | true | true | ||
| Label6 | Fan 1 | true | true | ||
| Label7 | Fan 2 | true | true | ||
| Frame1 | FStatus | Status | false | true | |
| Frame2 | FSet | Setting | false | true | |
| Frame3 | FAuto | Auto | false | true | |
| Frame4 | FManual | Manual | false | true | |
| Text1 | true | true | |||
| Option1 | Auto | true | true | ||
| Option2 | Manual | true | true | ||
| Command1 | Ok | true | true | ||
| Command2 | Cancel | true | true | ||
| Command3 | On | true | true | ||
| Command4 | Off | true | true | ||
| Command5 | On | true | true | ||
| Command6 | Off | true | true | ||
| Slider1 | FanA | true | true | Vulue : Max=100 Min=0, Small Change=10 | |
| Slider2 | FanM1 | false | true | Vulue : Max=100 Min=0, Small Change=10 | |
| Slider3 | FanM2 | false | true | Vulue : Max=100 Min=0, Small Change=10 | |
| Timer1 | false | Interval = 1 | |||
| Timer2 | false | Interval =300 | |||
| Timer3 | false | Interval = 2000 | |||
| Msomm1 | true | ||||
| Menueditor | Com | Connect | true | true |
Form 2:
| Component | Name | Caption | Enabled | Value | Other |
| Label1 | Com Port : | true | true | ||
| Combo1 | true | true | |||
| Command1 | Apply | true | true | ||
| Command2 | Cancel | true | true |
berikut script-scriptnya
Form 1 :
'=====================
Private Sub Com_Click()
If Com.Caption = "Connect" Then
Me.Enabled = False
Form2.Visible = True
Else
MSComm1.Output = "#0" & Chr(13)
MSComm1.PortOpen = False
Com.Caption = "Connect"
FSet.Enabled = False
Timer1.Enabled = False
Timer2.Enabled = False
Timer3.Enabled = False
Command1.Enabled = True
Command2.Enabled = True
Command3.Enabled = True
Command4.Enabled = True
Command5.Enabled = True
Command6.Enabled = True
Text1.Enabled = True
FanA.Enabled = True
FanM1.Enabled = False
FanM2.Enabled = False
Label2.Visible = False
Label1.Caption = "0'C"
FSet.Enabled = False
FAuto.Enabled = False
FManual.Enabled = False
End If
End Sub
Private Sub Command1_Click()
Timer3.Enabled = True
Text1.Enabled = False
FanA.Enabled = False
Command1.Enabled = False
End Sub
Private Sub Command2_Click()
Text1.Enabled = True
FanA.Enabled = True
FSet.Enabled = True
Timer3.Enabled = False
Command1.Enabled = True
End Sub
Private Sub Command3_Click()
FSet.Enabled = False
FanM1.Enabled = True
End Sub
Private Sub Command4_Click()
On Error Resume Next
FanM1.Enabled = False
MSComm1.Output = "!0" & Chr(13)
If FanM1.Enabled = False And FanM2.Enabled = False Then FSet.Enabled = True
End Sub
Private Sub Command5_Click()
FSet.Enabled = False
FanM2.Enabled = True
End Sub
Private Sub Command6_Click()
On Error Resume Next
FanM2.Enabled = False
MSComm1.Output = "@0" & Chr(13)
If FanM1.Enabled = False And FanM2.Enabled = False Then FSet.Enabled = True
End Sub
Private Sub FanM1_MouseUp(Button As Integer, Shift As Integer, x As Single, y As Single)
On Error Resume Next
MSComm1.Output = "!" & FanM1.Value & Chr(13)
End Sub
Private Sub FanM2_MouseUp(Button As Integer, Shift As Integer, x As Single, y As Single)
On Error Resume Next
MSComm1.Output = "@" & FanM2.Value & Chr(13)
End Sub
Private Sub Form_Load()
Label1.Caption = "0'C"
Text1.MaxLength = 3
End Sub
Private Sub Option1_Click()
FAuto.Enabled = True
FManual.Enabled = False
Timer3.Enabled = True
End Sub
Private Sub Option2_Click()
FAuto.Enabled = False
FManual.Enabled = True
Timer3.Enabled = False
End Sub
Private Sub Text1_KeyPress(KeyAscii As Integer)
If KeyAscii = 8 Then Exit Sub
If KeyAscii = 13 Then FanA.SetFocus
If Len(Text1.Text) = 0 And KeyAscii = 48 Then KeyAscii = 13
If KeyAscii < 48 Or KeyAscii > 57 Then
KeyAscii = 13
End If
End Sub
Private Sub Text1_LostFocus()
On Error GoTo err
If Text1.Text > 100 Then
MessageBox Me.hwnd, "Error!! Batas Suhu Max 100" & Chr(176) & "C", "Created By Ganang", vbCritical
Text1.SetFocus
End If
err:
End Sub
Private Sub Timer1_Timer()
On Error Resume Next
Dim Temp As String
Temp = Asc(MSComm1.Input)
If Temp <> "" Then
Label1.Caption = Temp & "'C"
End If
End Sub
Private Sub Timer2_Timer()
Dim Temps As Integer
Temps = Abs(Left(Label1.Caption, Len(Label1.Caption) - 2))
If Left(Label1.Caption, Len(Label1.Caption) - 2) > 60 Then
If Label2.Visible = True Then
Label2.Visible = False
Else
Label2.Visible = True
End If
Else
Label2.Visible = False
End If
End Sub
Private Sub Timer3_Timer()
On Error Resume Next
If Left(Label1.Caption, Len(Label1.Caption) - 2) > Trim(Text1.Text) Then
MSComm1.Output = "#" & FanA.Value & Chr(13)
Else
MSComm1.Output = "#0" & Chr(13)
End If
End Sub
'=====================
Form2 :
'=====================
Private Function Com() As String
On Error GoTo err
With Form1
.MSComm1.CommPort = Right(Trim(Combo1.Text), 1)
.MSComm1.PortOpen = True
.FSet.Enabled = True
.Timer1.Enabled = True
.Timer2.Enabled = True
.Com.Caption = "Disconnect"
End With
Exit Function
err:
Com = "err"
MessageBox Me.hwnd, "Error!! Tidak Dapat Terhubung", "Created By ganang", vbCritical
End Function
Private Sub Combo1_KeyPress(KeyAscii As Integer)
If KeyAscii = 13 Then
If Com = "err" Then Exit Sub
Unload Me
End If
End Sub
Private Sub Command1_Click()
If Com = "err" Then Exit Sub
Unload Me
End Sub
Private Sub Command2_Click()
Unload Me
End Sub
Private Sub Form_Load()
Dim i As Byte
Combo1.Clear
For i = 1 To 15
Combo1.AddItem "Com " & i
Next i
End Sub
Private Sub Form_QueryUnload(Cancel As Integer, UnloadMode As Integer)
Form1.Enabled = True
Form1.Show
End Sub
'=====================
Module :
'=====================
Public Declare Function MessageBox Lib "user32" Alias "MessageBoxA" (ByVal hwnd As Long, ByVal lpText As String, ByVal lpCaption As String, ByVal wType As Long) As Long
'=====================
Setelah selesai semua koneksikan mikrokotroler dan vb6 dengan vspe, bab ini sudah di bahas pada Membuat Program Led Atmega16 Dengan Interface VB6 ,
@catatan : masih ada sedikit bug saat simulasi
moga bermanfaat bagi agan-agan yang ingin mencobanya,
moga berhasil mencobanya..
moga berhasil mencobanya..
